BALTROTORS GRタイプ

優れたハーベスタやグラップルをお持ちでも、それと本体を接続するためのローテーターやリンクがしっかりしてなければ意味がありません。 弊社では北欧や北米で評価の高い「Baltrotors」のローテーター・リンクを取り扱っております。 ハーベスタ・グラップルと共にご使用いただければさらに生産性がアップいたします。

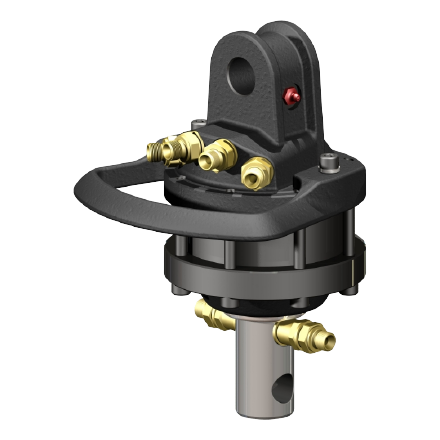

  • ROTATOR GR10

    Max. axial load static: 10kN
    Torque at 25MPa: 350Nm
    Rotator weight: 12kg

  • ROTATOR GR10-02

    Max. axial load static: 10kN
    Torque at 25MPa: 350Nm
    Rotator weight: 12kg

  • ROTATOR GR30

    Max. axial load static: 30kN
    Torque at 25MPa: 900Nm
    Rotator weight: 18kg

  • ROTATOR GR30A

    Max. axial load static: 30kN
    Torque at 25MPa: 900Nm
    Rotator weight: 18kg

  • ROTATOR GR30B

    Max. axial load static: 30kN
    Torque at 25MPa: 900Nm
    Rotator weight: 18kg

  • ROTATOR GR30Q

    Max. axial load static: 30kN
    Torque at 25MPa: 900Nm
    Rotator weight: 18kg

  • ROTATOR GR30PF

    Max. axial load static: 30kN
    Torque at 25MPa: 900Nm
    Rotator weight: 24kg

  • ROTATOR GR30PFR

    Max. axial load static: 30kN
    Torque at 25MPa: 900Nm
    Rotator weight: 23kg

  • ROTATOR GR30FA-01

    Max. axial load static: 30kN
    Torque at 25MPa: 900Nm
    Rotator weight: 22kg

  • ROTATOR GR30FA

    Max. axial load static: 30kN
    Torque at 25MPa: 900Nm
    Rotator weight: 22kg

  • ROTATOR GR30FF

    Max. axial load static: 30kN
    Torque at 25MPa: 900Nm
    Rotator weight: 22kg

  • ROTATOR GR46

    Max. axial load static: 45kN
    Torque at 25MPa: 1100Nm
    Rotator weight: 23kg

  • ROTATOR GR46-01

    Max. axial load static: 45kN
    Torque at 25MPa: 1100Nm
    Rotator weight: 29kg

  • ROTATOR GR46/68M

    Max. axial load static: 45kN
    Torque at 25MPa: 1200Nm
    Rotator weight: 29kg

  • ROTATOR GR46/69M

    Max. axial load static: 45kN
    Torque at 25MPa: 1200Nm
    Rotator weight: 29kg

  • ROTATOR GR463

    Max. axial load static: 45kN
    Torque at 25MPa: 1100Nm
    Rotator weight: 27kg

  • ROTATOR GR463-01

    Max. axial load static: 45kN
    Torque at 25MPa: 1100Nm
    Rotator weight: 29kg

  • ROTATOR GR465

    Max. axial load static: 45kN
    Torque at 25MPa: 1100Nm
    Rotator weight: 27kg

  • ROTATOR GR465/68M

    Max. axial load static: 45kN
    Torque at 25MPa: 1200Nm
    Rotator weight: 35kg

  • ROTATOR GR55M

    Max. axial load static: 55kN
    Torque at 25MPa: 1300Nm
    Rotator weight: 29kg

  • ROTATOR GR55-01

    Max. axial load static: 55kN
    Torque at 25MPa: 1300Nm
    Rotator weight: 29kg

  • ROTATOR GR55MF

    Max. axial load static: 55kN
    Torque at 25MPa: 1300Nm
    Rotator weight: 36kg

  • ROTATOR GR55FF

    Max. axial load static: +45/-34kN
    Torque at 25MPa: 1300Nm
    Rotator weight: 35kg

  • ROTATOR GR60

    Max. axial load static: 60kN
    Torque at 25MPa: 1800Nm
    Rotator weight: 36kg

  • ROTATOR GR60DB

    Max. axial load static: +60/-50kN
    Torque at 25MPa: 1800Nm
    Rotator weight: 36kg

  • ROTATOR GR60/69

    Max. axial load static: 60kN
    Torque at 25MPa: 1800Nm
    Rotator weight: 37kg

  • ROTATOR GR60/69DB

    Max. axial load static: +60/-50kN
    Torque at 25MPa: 1800Nm
    Rotator weight: 37kg

  • ROTATOR GR60/78

    Max. axial load static: 60kN
    Torque at 25MPa: 1600Nm
    Rotator weight: 38kg

  • ROTATOR GR60/78DB

    Max. axial load static: +60/-50kN
    Torque at 25MPa: 1800Nm
    Rotator weight: 40kg

  • ROTATOR GR603

    Max. axial load static: 60kN
    Torque at 25MPa: 1800Nm
    Rotator weight: 43kg

  • ROTATOR GR603DB

    Max. axial load static: +60/-50kN
    Torque at 25MPa: 1800Nm
    Rotator weight: 43kg

  • ROTATOR GR603-2

    Max. axial load static: 60kN
    Torque at 25MPa: 1800Nm
    Rotator weight: 45kg

  • ROTATOR GR603-2DB

    Max. axial load static: +60/-50kN
    Torque at 25MPa: 1800Nm
    Rotator weight: 46kg

  • ROTATOR GR623

    Max. axial load static: +60/-50kN
    Torque at 25MPa: 2400Nm
    Rotator weight: 44kg

  • ROTATOR GR104DB

    Max. axial load static: +100/-80kN
    Torque at 25MPa: 2500Nm
    Rotator weight: 59kg

  • ROTATOR GR105DB

    Max. axial load static: +100/-80kN
    Torque at 25MPa: 2500Nm
    Rotator weight: 62kg

  • ROTATOR GR110-1DB

    Max. axial load static: +100/-80kN
    Torque at 25MPa: 2500Nm
    Rotator weight: 50kg

  • ROTATOR GR110-2DB

    Max. axial load static: +100/-80kN
    Torque at 25MPa: 2500Nm
    Rotator weight: 54kg

  • ROTATOR GR12S

    Max. axial load static: +120/-90kN
    Torque at 25MPa: 2900Nm
    Rotator weight: 70kg

  • ROTATOR GR12H

    Max. axial load static: +120/-90kN
    Torque at 25MPa: 2900Nm
    Rotator weight: 69kg

  • ROTATOR GR12A8

    Max. axial load static: +120/-90kN
    Torque at 25MPa: 2900Nm
    Rotator weight: 70kg

  • ROTATOR GR16S

    Max. axial load static: +160/-90kN
    Torque at 25MPa: 3400Nm
    Rotator weight: 71kg

  • ROTATOR GR16H

    Max. axial load static: +160/-90kN
    Torque at 25MPa: 3400Nm
    Rotator weight: 71kg

  • ROTATOR GR16A8

    Max. axial load static: +160/-90kN
    Torque at 25MPa: 3400Nm
    Rotator weight: 73kg

  • ROTATOR GR16S203

    Max. axial load static: +160/-90kN
    Torque at 25MPa: 3400Nm
    Rotator weight: 74kg
